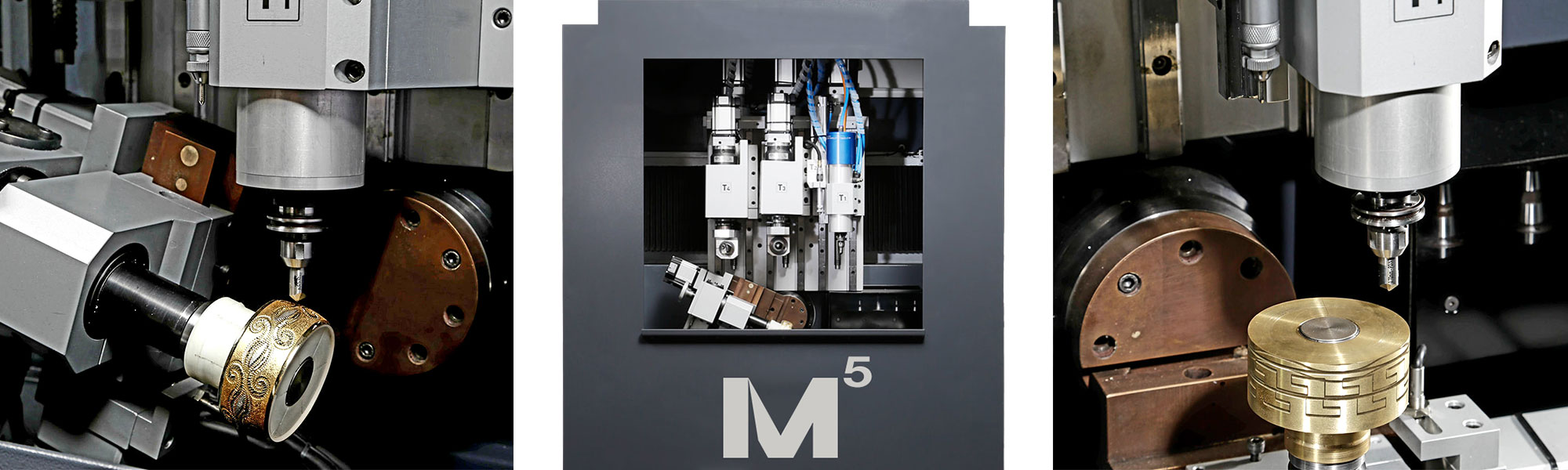

IM 5
High precision 5 axis CNC jewellery milling machine for flat and radial rings, bangles or watch parts.
Thanks to its design and the arrangement of the simultaneous 5 axes, the IM 5 offers maximum freedom and possibilities that are difficult to achieve with conventional milling centres in the jewellery and watch industry. Whether flat or radial rings, bangles or watch parts, all surfaces are manufactured with high productivity and highest precision.
With the specially developed software and the simple user interfaces, these machines can be operated easily and intuitively. The software recognizes any DXF file that can be created with the most popular jewelry software on the market and automatically generates the custody paths. This guarantees the customer maximum user freedom in his studio and with his familiar jewellery design software.
Technical specifications
| Travel path X-axis | 500 mm |
| Travel path Y-axis | 500 mm |
| Travel path Z-axis | 200 mm |
| Travel path A-axis | 360° |
| Travel path B-axis | 360° |
| Vertical milling spindle | |
| – Spindle speed max. | 50.000 rpm |
| – Driving power | 2.8 kW |
| Horizontal milling spindle | |
| – Spindle speed max | 12.000 rpm |
| – Driving power | 0.75 kW |
| Pneumatic milling spindle | |
| – Spindle speed max. | 70.000 rpm |
| Connection | 220V |
| Total connected load | 3.5 kW |
| Machine weight | Approx. 1500 kg |
| Dimensions (L x W x H) | Approx. 1.600 mm x 850 mm x 2.000 mm |
| Pneumatic supply | 6 bar |
| Control system | IM Control |
| More Options | |
| – Hammering spindle for diamond hammering | – Network connection |
| – Oil cooling device | – Pressure control |
| – Teleservice for remote diagnostics | – Various part-specitif internal and external clamping devices |

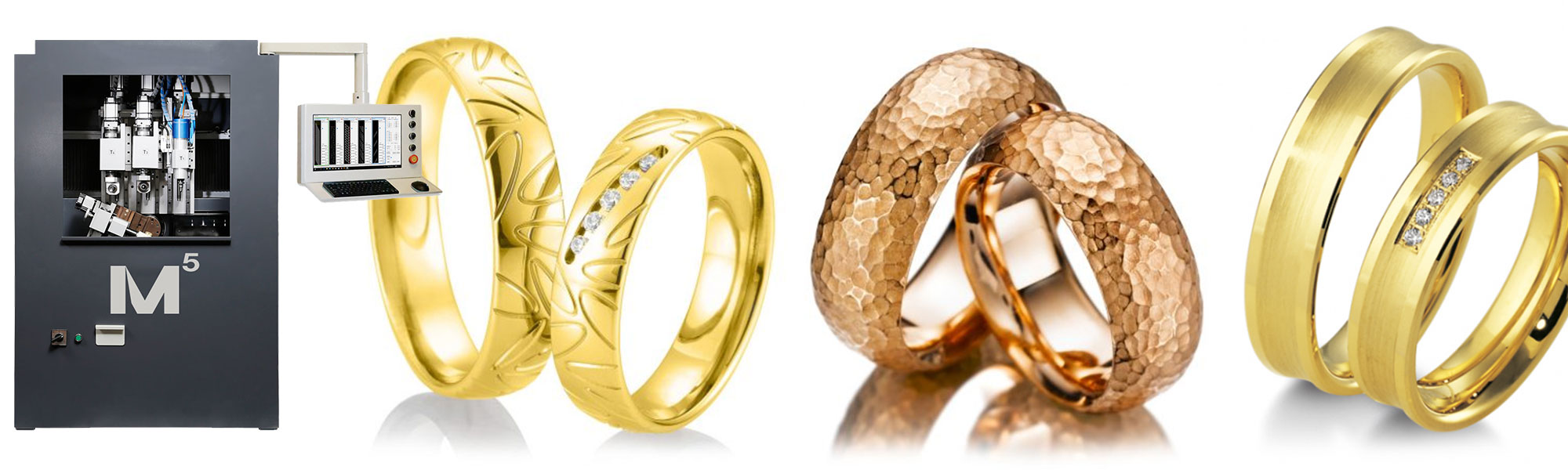

Application samples
