IM 3
High precision 3 axis CNC jewellery milling machine for flat rings, bangles or watch parts.

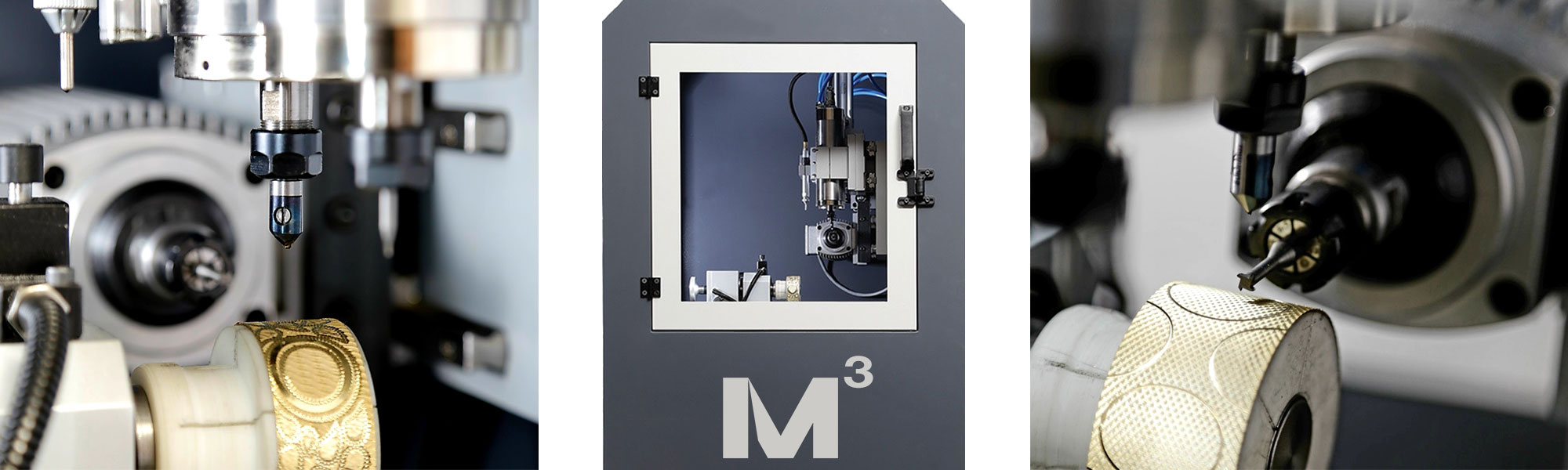

Powered by 3 powerful servo motors and two high-end milling spindle up to 40.000 rpm and a spindle with 70,000 rpm for punching, the IM 3 has no limits when machining flat pieces of jewellery. A specially mounted vertical spindle ensures productive processing of the background design for rings and bracelets. The fine clamping of the collet chucks for an optimal and safe clamping width of the workpieces with fine and sensitive surfaces is done manually. The Imatek Makina milling machine is rounded off by the specially designed CNC software.
With the specially developed software and the simple user interfaces, these machines can be operated easily and intuitively. The software recognizes any DXF file that can be created with the most popular jewelry software on the market and automatically generates the custody paths. This guarantees the customer maximum user freedom in his studio and with his familiar jewellery design software.
Technical specifications
| Travel path X-axis | 150 mm |
| Travel path Y-axis | 150 mm |
| Travel path A-axis | 360° |
| Vertical milling spindle | |
| – Amount | 2 |
| – Spindle speed max. | 40.000 rpm |
| – Driving power | 1.2 kW |
| Horizontal milling spindle | |
| – Spindle speed max | 12.000 rpm |
| – Driving power | 1.1 kW |
| Pneumatic milling spindle | |
| – Spindle speed max. | 70.000 rpm |
| Connection | 220V |
| Total connected load | 3.5 kW |
| Machine weight | Approx. 350 kg |
| Dimensions (L x W x H) | Approx. 750 mm x 750 mm x 1.820 mm |
| Pneumatic supply | 6 bar |
| Control system | IM Control |
| More Options | |
| – Hammering spindle for diamond hammering | – Network connection |
| – Oil cooling device | – Pressure control |
| – Teleservice for remote diagnostics | – Various part-specitif internal and external clamping devices |
